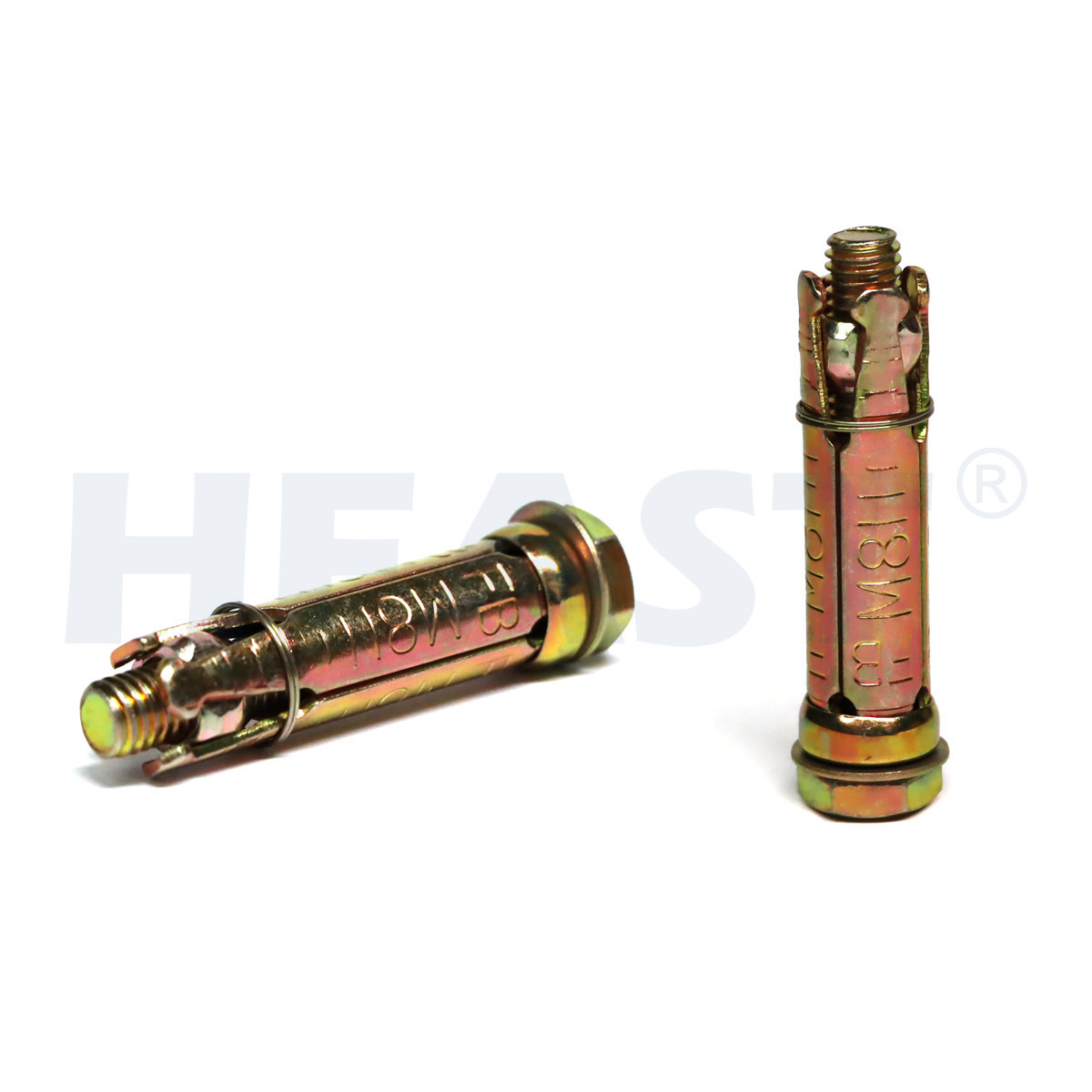

Wedge Anchor

Size: M6-M24, 1/4-1''
Material: Carbon steel, Stainless steel
Coating: Zinc plated, Yellow zinc plated
Standard: DIN, ANSI, BSW, GB

Category:

Anchor Series

E-mail:

info@hfastfix.com

Inquire Now

Description

Wedge anchor is a type of fastener designed for use in concrete or masonry. It consists of a cylindrical body with a longitudinal split running along its length.
The internal ends of the split have tapered sections that expand when a bolt is tightened, creating a secure mechanical bond with the base material.

Features

★ Wedge Expansion: The anchor has a wedge or cone-shaped element that expands when driven into the hole, providing a secure grip.
★ Internal Thread: Like drop-in anchors, wedge anchors often have internal threads for direct attachment of threaded rods or bolts.
★ Pre-Drilling: They require pre-drilling of the hole to accommodate the anchor's expansion.

Dimensions

Size: M6-M24, 1/4-1''
Material: Carbon steel, Stainless steel
Coating: Zinc plated, Yellow zinc plated
Standard: DIN, ANSI, BSW, GB
Grade: 4,5,6

Technical Data

Nominal Anchor Diameter(in.)	Minimum Embedment Depth (in.)	Concrete Compressive Strength
		4,000 psi		6,000 psi
		Allowable Tension Load Capacity (lbs.)	Allowable Shear Load Capacity(lbs.)	Allowable Tension Load Capacity (lbs.)	Allowable Shear Load Capacity (lbs.)
1/4" M6	1-1/8"	342	344	488	344
1/4" M6	1-3/4"	392	426	487	301
3/8" M10	1-5/8"	686	911	1132	911
3/8" M10	2-3/8"	926	916	1394	916
1/2" M12	2-1/4"	1103	1614	1934	1614
1/2" M12	3-3/4"	1697	1569	2391	1569
5/8" M16	2-3/4"	1985	2761	2277	2761
5/8" M16	4-5/8"	2524	2477	2996	2477
3/4" M20	3-3/8"	2571	3716	2915	3716
3/4" M20	5-5/8"	2667	3649	3088	3649
1" M24	4-1/2"	4153	7107	5726	7107
1" M24	8"	5619	7275	6385	7275
1.Ultimate load capacities must be reduced by a minimum factor of safety of 4.0 to determine allowable loads. 2.Consideration of safety factors of 10 or higher may be necessary depending on application, such as life safety or overhead. 3.Tabulated load values are for anchors installed in uncracked concrete. 4.The concrete compressive strength must be at the specified minimum at the time of installation. 5.To determine which grade of stainless steel may be more appropriate for your application, please consult a design professional.
